Self-centering locating pin fixture details

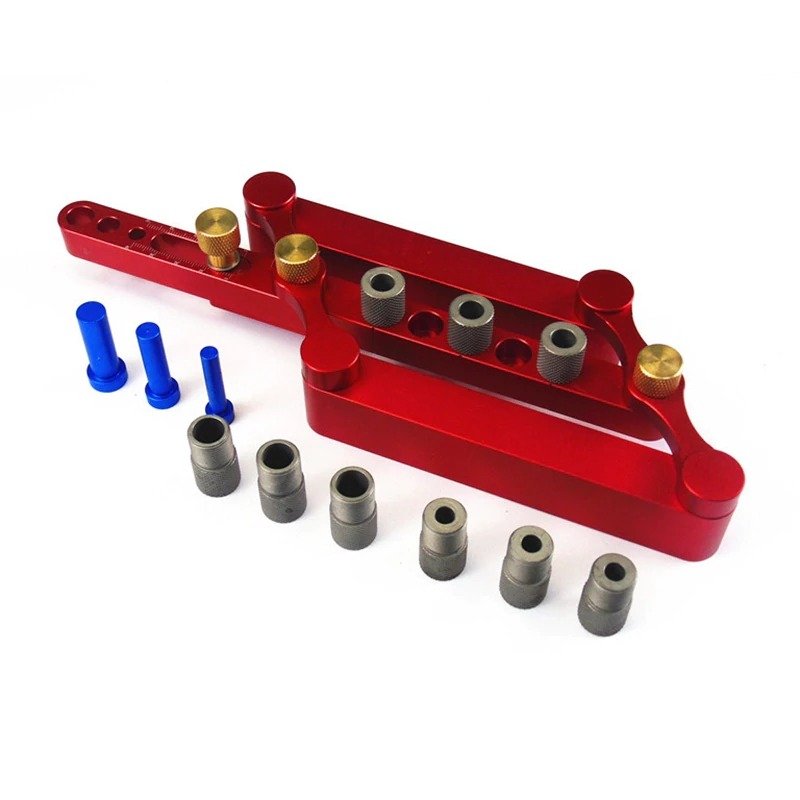

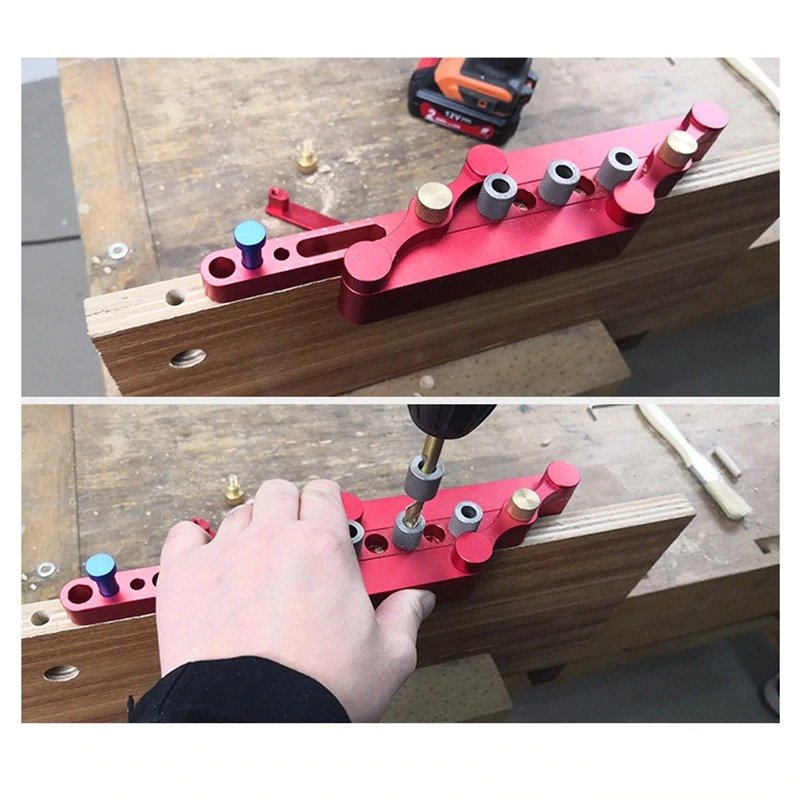

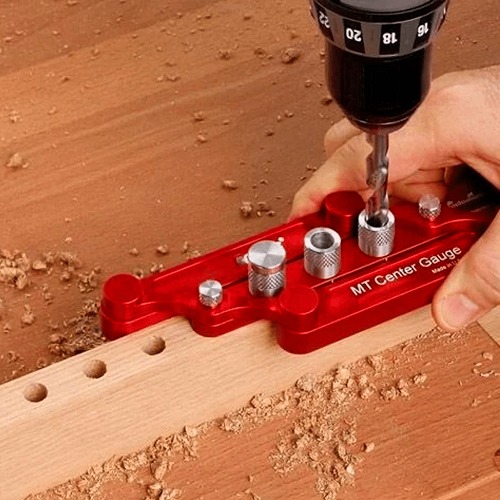

Perfect mortise and tenon marking plus pin point positioning accuracy! Center Gauge and Doweling Jig finds the center of board edges easily and accurately every time; no measurements and no tedious trial-and-error adjustments. This makes it the perfect tool for mortise and tenon layouts and for drilling perfectly aligned dowel joint holes. Center gauge pin fixture. To switch to pin mode, remove the marker strip and install the pin clamp strip. To use, simply align the precision machined notches on the jig pin rods with the pin location markings on the board, hold the jig and drill the holes. Slide the jig to the next position, align and drill the holes. No need to clamp clamps or tighten knobs. Features not found on other fixtures. Adjustable end stops for attaching pin fixtures for drilling two or three precisely spaced end textured holes to align face frames and rails. A convenient inch/mm scale lets you set stops exactly. What could be easier than this? Based on the never-fail reliability of the parallelogram, the MT Center Gauge features two precision machined parallel arms that quickly adjust to billet thickness, placing the center rod dead center on the material. Just use a pencil, marker or scribing tool to mark the location of the center bar on your inventory - you're done! Features: High Quality Durable Material - Joinery Punch Locator is Aluminum Alloy 6061 + Steel HRC50 (Drill Sleeve) + Brass (Nut). High hardness, quality assurance, durable and long service life. High Precision - Joinery Punch Locators are available in improved versions with 6mm, 8mm and 10mm bushings and 1mm and 2mm scored holes for making holes of different sizes. Adjustable Stops - Special adjustable stops for joinery punches for precise drilling, allowing holes to be drilled at equal intervals along the wood. Convenient and practical - With the practical joinery punch locator, you can make woodworking work more convenient. It is a great tool for furniture factories and woodworking enthusiasts. Specifications: Material: Aluminum Alloy 6061 Finish: Anodized Treatment Drill Sleeve Material: Steel HRC50° Convenient and Practical - With the practical joinery punch locator, you can make woodworking work more convenient. It is a great tool for furniture factories and woodworking enthusiasts. Specifications: Material: Aluminum Alloy 6061 Finish: Anodized Treatment Drill Sleeve Material: Steel HRC50° Convenient and Practical - With the practical joinery punch locator, you can make woodworking work more convenient. It is a great tool for furniture factories and woodworking enthusiasts. Specifications: Material: Aluminum Alloy 6061 Surface Treatment: Anodized Treatment Drill Sleeve Material: Steel HRC50°
